Memoria. 14th and 13th Generation Intel® Core™ i9/i7 Processors:. - Support for DDR5 5600/5200/4800/4400 MT/s memory modules. 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:. - Support for DDR5 4800/4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory. Dual channel memory architecture. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode). Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Support for Extreme Memory Profile (XMP) memory modules. (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to ""Memory Support List"" on GIGABYTE"s website for more information.). Gráfica Integrada. Integrated Graphics Processor-Intel® HD Graphics support:. - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. . * Support for HDMI 2.1 version and HDCP 2.3.. ** Support for native HDMI 2.1 TMDS compatible ports.. . - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz. . * Support for DisplayPort 1.2 version and HDCP 2.3. . (Graphics specifications may vary depending on CPU support.). Support for up to triple-display at the same time. Audio. Realtek® Audio CODEC. High Definition Audio. 2/4/5.1/7.1-channel. . * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.. . Support for S/PDIF Out. LAN. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps). Zócalos de Expansión. CPU:. - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16. . * The PCIEX16 slot can only support a graphics card or an NVMe SSD.. . Chipset:. - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1. . Interfaz de almacenamiento. CPU:. - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU). Chipset:. - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB). - 4 x SATA 6Gb/s connectors. RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices. USB. Chipset:. - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header. - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header). - 2 x USB 2.0/1.1 ports on the back panel. Chipset+USB 2.0 Hub:. - 4 x USB 2.0/1.1 ports available through the internal USB headers. Conectores Internos E/S. 1 x 24-pin ATX main power connector. 1 x 8-pin ATX 12V power connector. 1 x CPU fan header. 3 x system fan headers. 1 x addressable LED strip header. 1 x RGB LED strip header. 2 x M.2 Socket 3 connectors. 4 x SATA 6Gb/s connectors. 1 x front panel header. 1 x front panel audio header. 1 x USB Type-C® header, with USB 3.2 Gen 1 support. 1 x USB 3.2 Gen 1 header. 2 x USB 2.0/1.1 headers. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only). 1 x serial port header. 1 x parallel port header. 1 x S/PDIF Out header. 1 x Q-Flash Plus button. 1 x reset jumper. 1 x Clear CMOS jumper. Panel E/S Trasero. 2 x USB 2.0/1.1 ports. 1 x PS/2 keyboard/mouse port. 1 x D-Sub port. 1 x DisplayPort. 1 x HDMI port. 3 x USB 3.2 Gen 1 ports. 1 x RJ-45 port. 3 x audio jacks. Controlador E/S. iTE® I/O Controller Chip. Monitorización Hardware. Voltage detection. Temperature detection. Fan speed detection. Water cooling flow rate detection. Fan fail warning. Fan speed control. . * Whether the fan speed control function is supported will depend on the fan you install. BIOS. 1 x 128 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Otras Características. Support for GIGABYTE Control Center (GCC). . * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.. . Support for Q-Flash. Support for Q-Flash Plus

• Chipset: Intel B760
• Formato: Micro ATX
• Hdmi: Si

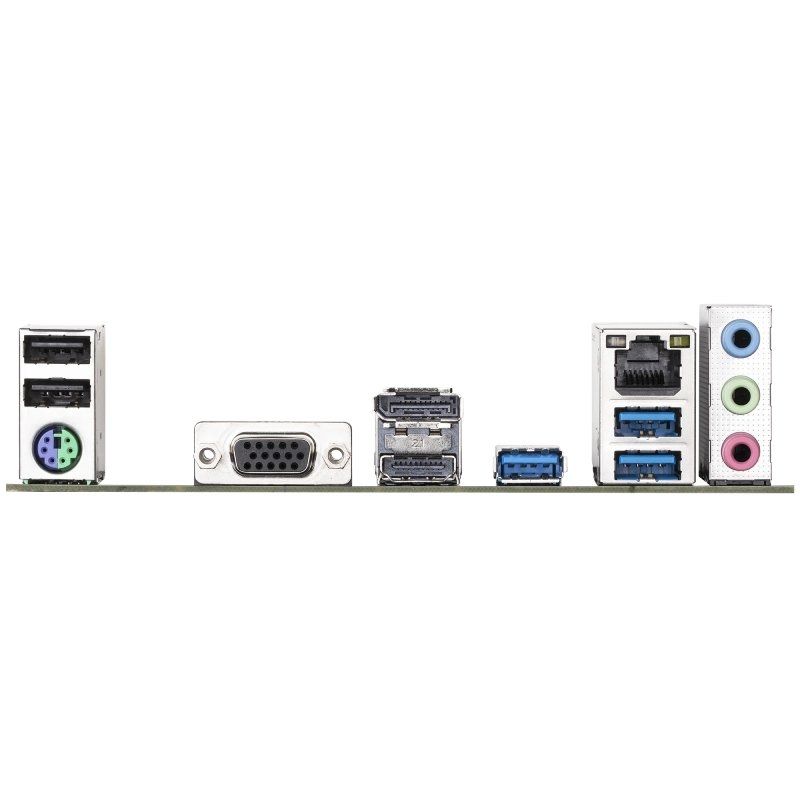

• Imagen Salida: Graficos en CPU, HDMI, Displayport, VGA
• Memoria Maxima: 256GB
• Microprocesador Integrado: No
• Multi-Grafica: No
• N Bancos De Memoria: 4
• N Conexiones SATA: 4
• N USB 2.0: 2 Traseros, 4 Internos
• N USB 3.2 Gen1: 3 Traseros, 2 Internos, 1 Tipo C Interno
• Pci: 1 PCIe x16
• Raid: Si
• SATA 6Gb/S: 4
• Socket: Intel LGA 1700
• Tecnologia De Memoria: DDR5
• Tipo De Raid: 0,1,5,10
• USB 3.0: Si
• USB3.1 Interno: Si
