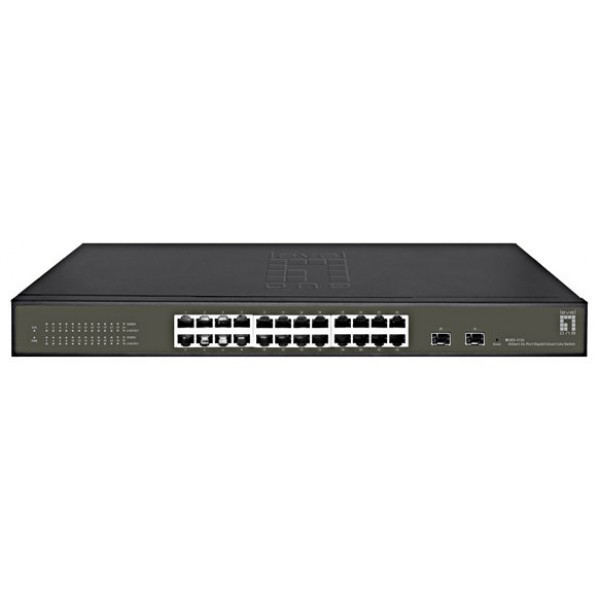

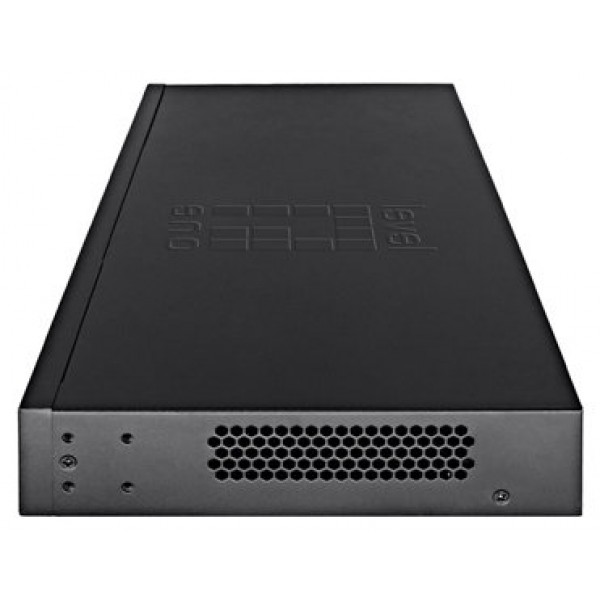

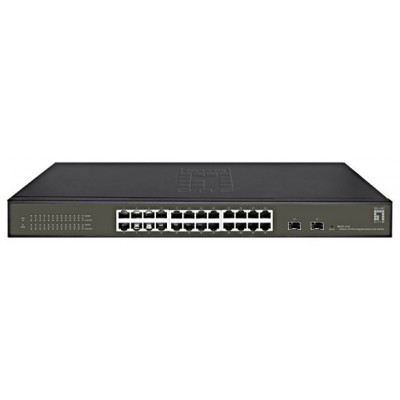

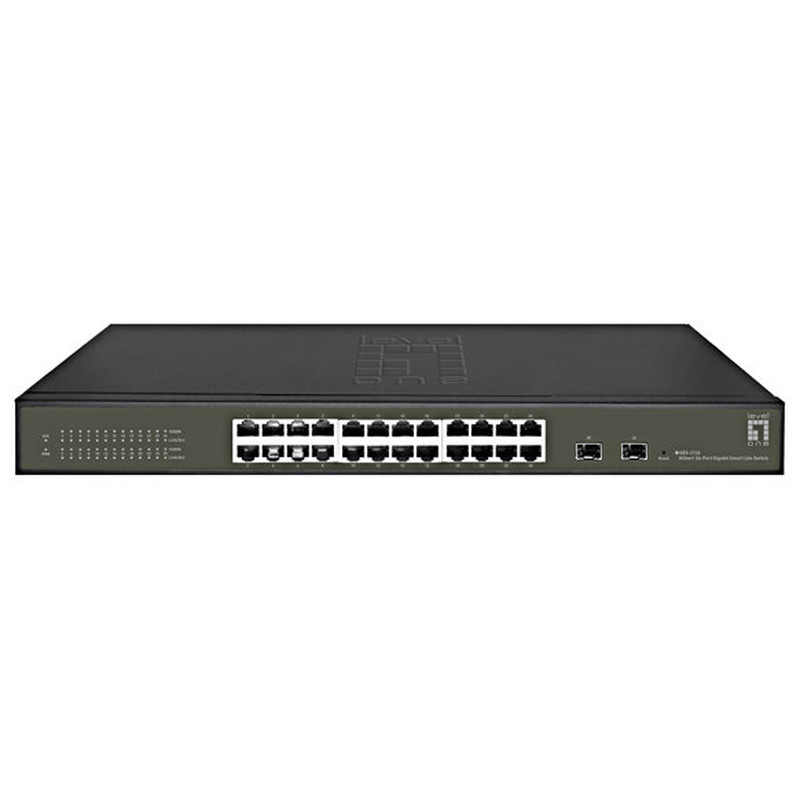

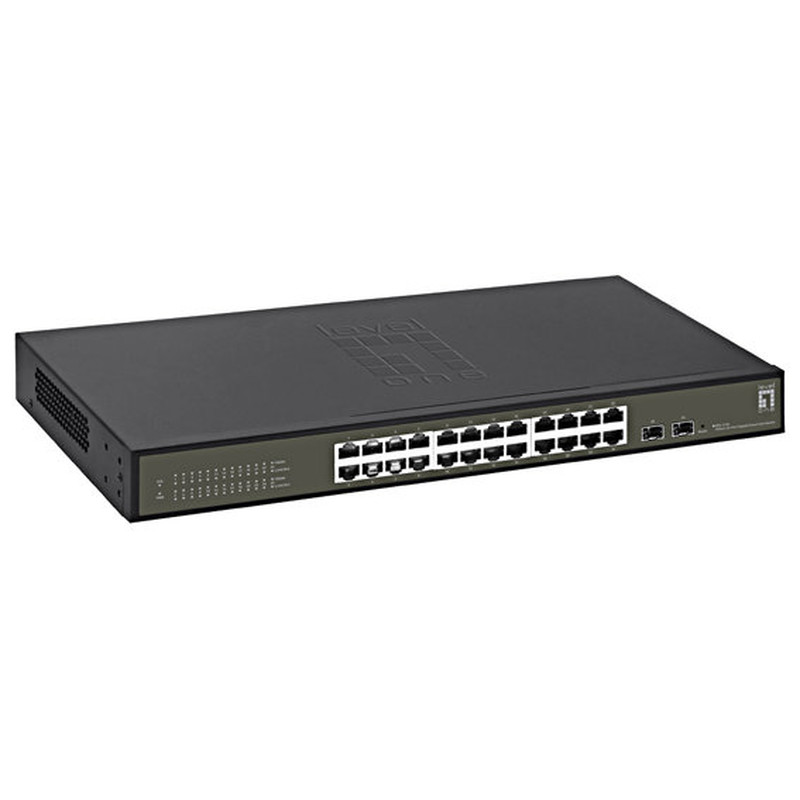

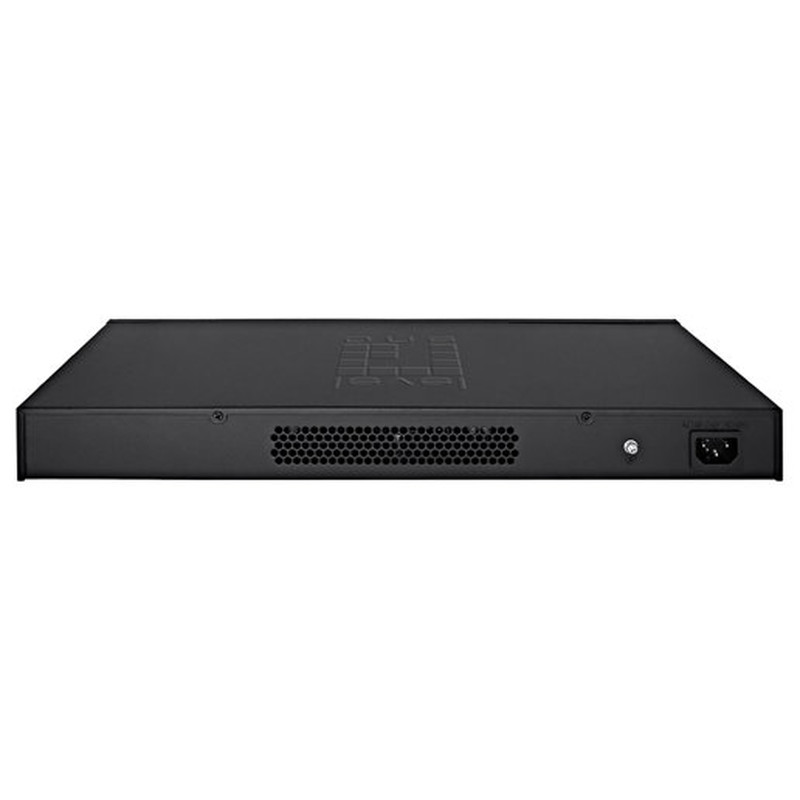

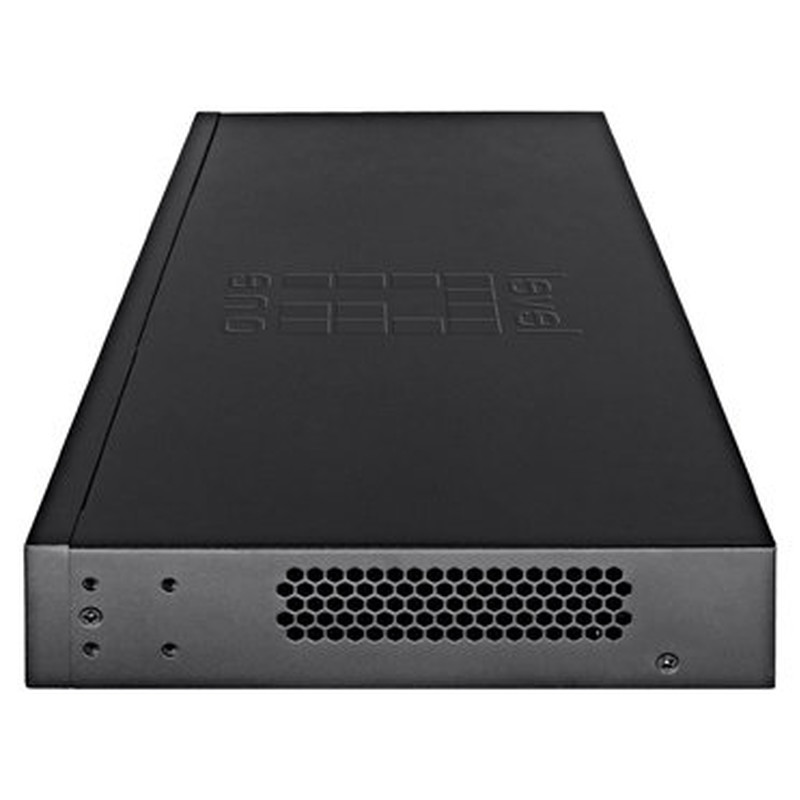

SWITCH SEMIGESTIONABLE LEVEL ONE HILBERT 24P GIGA + 2P SFP GIGA CARCASA METALICA

Approval and compliance:
UKCA, CE, FCC Class A, RoHS
Operating humidity:
10% RH ~ 90% RH
Operating temperature:
0°C ~45°C
Storage humidity:
5% RH ~ 95% RH
Storage temperature:
-40°C ~ 70°C
Embedded system:
SoC
Acoustic noise:
0 dB (A)
Packet buffer:
4.1 Mbits
Indicator:
Power, System, Link/Act
Jumbo frame (KB):
9K
MAC address table:
8K
Flash memory size:
2MB
Mount:
19 rack mount, Desk mount
Power Supply:
100-240 VAC, 50-60 Hz
Standards:
IEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100- BASE-TX (Fast Ethernet)
IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
IEEE 802.3z 1000BASE-X (Gigabit Ethernet)
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3az: Energy Efficient Ethernet
Port Configuration:
26
Features:
L2 Switching Features
IGMP Snooping
Link Aggregation (Supports static link aggregation)
Port Mirroring
Cable Test VLAN
Supports up to 32 VLANs (out of 4K VLAN IDs)
MTU/Port/802.1Q VLAN Quality of Service (QoS)
Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
Management:
Web-based Graphic User Interface (GUI)
Supports IP Locator for easier IP management.
Product weight:
1.85 Kg
Color:
Black
Model number:
QLGES2126-
Switching capacity:
52 Gbps
Grade:
Commercial
Data Rate:
Gigabit Ethernet
PoE Supported:
No
Manageable:
Yes
Fanless:
Yes
Concurrent ports:
26 Total
Series:
HILBERT series
Power consumption:
18 W
Heat dissipation:
61.42 (Btu/H)
MTBF:
43,800 hrs


Package Contents

QLGES2126-
Power Cord
19 Rack Mount Kit
Quick Installation Guide
Declaration of Conformity
