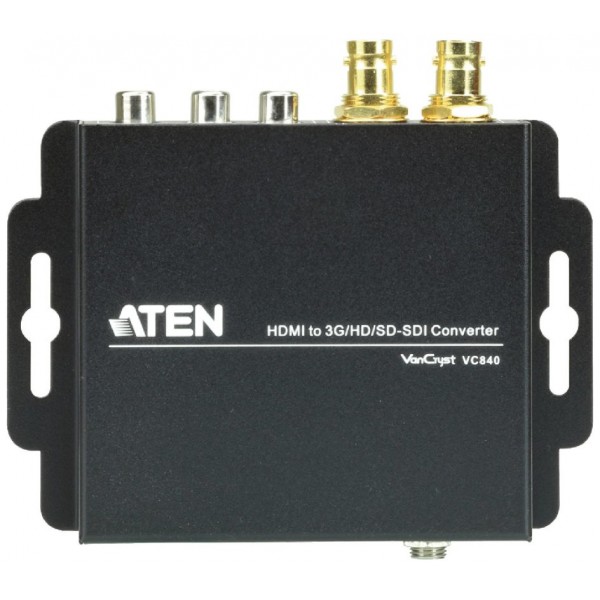

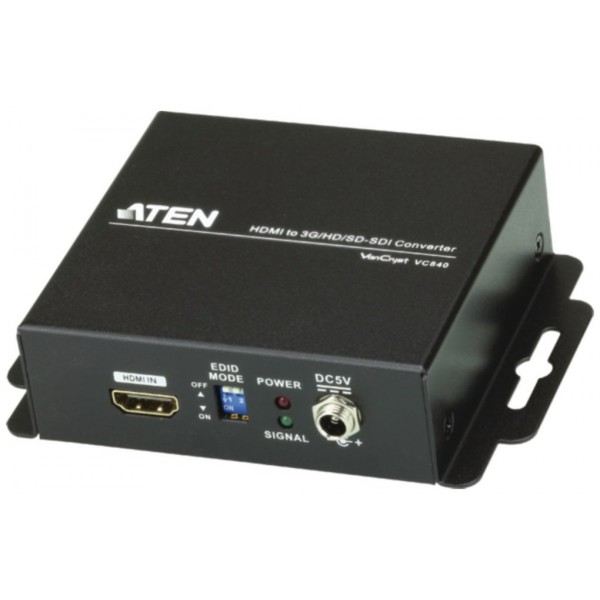

HDMI to SDI converter

HDMI to SDI converter

Conversion of a HDMI input signal into different 3G/HD/SD-SDI formats without loss in real time
Supports analogue stereo and digital sound output via coaxial connection
HDMI (deep colour)

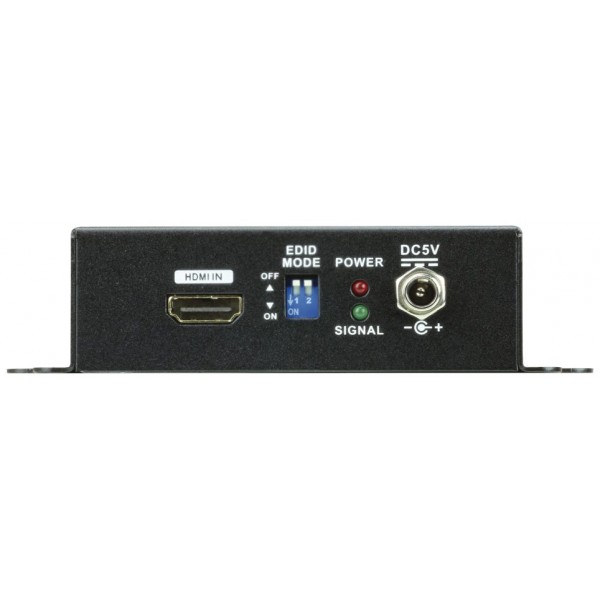

LED display for power supply and signal status
SDI transfer paths up to 90 m (3G-SDI), 150 m (HDSDI) and 300 m (SD-SDI) via RG6
Supports SD-SDI (SMPTE 259M, up to 270 Mbps)
Supports HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps)
Supports 3G-SDI (SMPTE 424M, 425M Level A, up to 2.97 Gbps)
Supported image formats: 525i@59.96, 625i@50, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.97/24/25/29.97/30/50/59.94/60, 2048 x 1080
Supports 8 sound channels with 48 kHz sampling rate

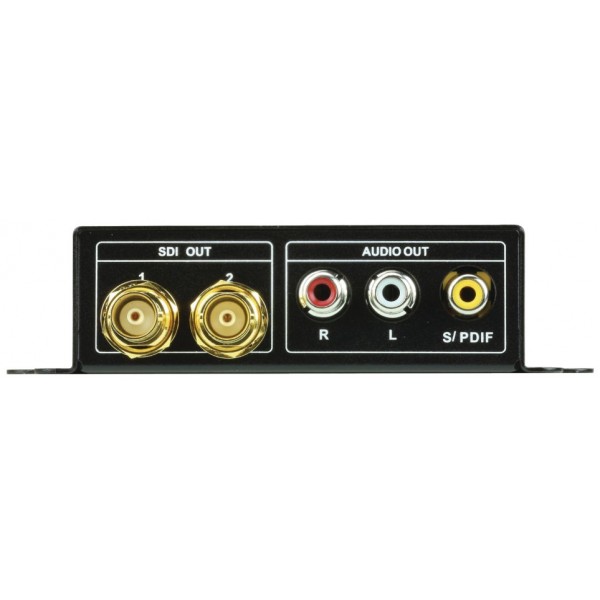

2 SDI outputs with stabilised clock for two screens
Automatic recognition of the signal type 3G/HD/SD-SDI
Re-timing of SDI signals for cascade connection to extend the transfer paths
Mechanically secured plug for the power supply for interruption-free data transfer
Selectable EDID settings and EDID learning capability

Interfaz de host: HDMI
Interfaz de salida: BNC
Voltaje de entrada: 5 V
Color del producto: Negro
Intervalo de temperatura operativa: 0 - 40 °C
Intervalo de temperatura de almacenaje: -20 - 60 °C
Intervalo de humedad relativa para funcionamiento: 20 - 90%
Ancho: 107 mm
Profundidad: 122,2 mm
Altura: 30,4 mm
Peso: 290 g




- Interfaz de host: HDMI
- Interfaz de salida: BNC
- Ancho: 107 mm
- Profundidad: 122,2 mm
- Altura: 30,4 mm
- Peso: 290 g
- Voltaje de entrada: 5 V
- Intervalo de temperatura operativa: 0 - 40 °C
- Intervalo de temperatura de almacenaje: -20 - 60 °C
- Humedad relativa de funcionamiento: 20 - 90%
- Color del producto: Negro
